5.12: Folds

ANTICLINES

In structural geology, an anticline is a fold that is convex up and has its oldest beds at its core. The term is not to be confused with antiform, which is a purely descriptive term for any fold that is convex up. Therefore if age relationships between various strata are unknown, the term antiform should be used.

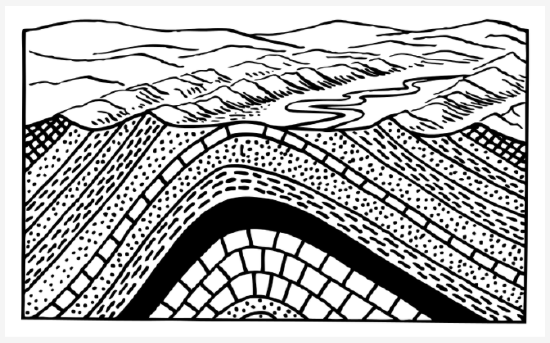

Figure 1. Diagram of an anticline.

On a geologic map, anticlines are usually recognized by a sequence of rock layers that are progressively older toward the center of the fold because the uplifted core of the fold is preferentially eroded to a deeper stratigraphic level relative to the topographically lower flanks. The strata dip away from the center, or crest, of the fold.

If an anticline plunges (i.e., is inclined to the Earth’s surface), the surface strata will form Vs that point in the direction of plunge. Anticlines are often flanked by synclines although faulting can complicate and obscure the relationship between the two. Folds often form during crustal deformation as the result of shortening that accompanies orogenic mountain building. In many cases anticlines are formed by movement on non-planar faults during both shortening and extension, such as ramp anticlines and rollover anticlines.

Figure 2. Anticline with syncline visible at far right. Note the man standing before the formation, for scale.

Terminology

Any fold whose form is convex upward is an antiform. Antiforms containing progressively younger rocks from their core outwards are anticlines.

An anticline or antiform has a crest, which is the highest point on a given stratum along the top of the fold. A hinge in an anticline is the locus of maximum curvature or bending in a given stratum in the fold. An axis is an imaginary line connecting the hinges in the different strata in a two-dimensional cross-section through the anticline. Connecting the hinges or points of maximum curvature in the different layers in three dimensions produces an axial plane or axial surface. In a symmetrical anticline, a surface trace of the axial plane coincides with the crest. With an asymmetrical anticline, the surface trace of the axial plane or axis will be offset from the crest toward the steeper flank of the fold. Anoverturned anticline is an asymmetrical anticline with a flank or limb that has been tilted beyond perpendicular so that the beds in that limb are upside-down.

A structure that plunges in all directions to form a circular or elongate structure is a dome. Domes are generally formed from one main deformation event, or via diapirism from underlying magmatic intrusions or movement of upwardly mobile, mechanically ductile material such as rock salt (salt dome) and shale (shale diapir). The Richat Structure of the Sahara is considered a dome that has been laid bare by erosion.

An anticline which plunges at both ends is termed a doubly plunging anticline, and may be formed from multiple deformations, or superposition of two sets of folds, or be related to the geometry of the underlying detachment fault and the varying amount of displacement along the surface of that detachment fault. The highest point on a doubly plunging anticline (or any geologic structure for that matter) is called the “culmination.”

An elongate dome which developed as the sediments were being deposited is referred to as a pericline.

An anticlinorium is a series of anticlinal folds on a regional-scale anticline. Examples include the Late Jurassic to Early Cretaceous Purcell Anticlinorium in British Columbia and the Blue Ridge anticlinorium of northern Virginia and Maryland in the Appalachians, or the Nittany Valley in central Pennsylvania.

Economic Significance

Doubly plunging or faulted anticlines, culminations, and structural domes are favored locations for oil and natural gas drilling; the low density of petroleum causes it to buoyantly migrate upward to the highest parts of the fold, until stopped by a low-permeability barrier such as an impermeable stratum or fault zone. Examples of low-permeability seals that contain the hydrocarbons, oil and gas, in the ground include shale, limestone, sandstone, and even salt domes. The actual type of stratum does not matter as long as it has low permeability.

Figure 3. Structural trap: anticlinal fold

Periclines are important focal points for pooling of hot, metal-laden formational brines, which can form manto ore deposits, Irish-type lead-zinc deposits and uranium deposits, amongst others.

Culminations in folded strata which are cut by shears and faults are favoured loci for deposition of saddle-reef style lode gold deposits.

SYNCLINES

In structural geology, a syncline is a fold with younger layers closer to the center of the structure. A synclinorium (plural synclinoriums or synclinoria) is a large syncline with superimposed smaller folds. Synclines are typically a downward fold, termed a synformal syncline (i.e. a trough); but synclines that point upwards, or perched, can be found when strata have been overturned and folded (an antiformal syncline).

Figure 4. Diagram of a syncline and an anticline.

Characteristics

On a geologic map, synclines are recognized by a sequence of rock layers that grow progressively younger, followed by the youngest layer at the fold’s center or hinge, and by a reverse sequence of the same rock layers on the opposite side of the hinge. If the fold pattern is circular or elongate circular the structure is a basin. Folds typically form during crustal deformation as the result of compression that accompanies orogenic mountain building.

Notable Examples

• Powder River Basin, Wyoming, USA.
• Sideling Hill roadcut along Interstate 68 in western Maryland, USA, where the Rockwell Formation and overlying Purslane Sandstone are exposed.
• Western Lake Superior, which occupies a basin created by the Midcontinent Rift System
• Saou, a commune in the Drôme department in southeastern France
• The Catlins, an area in the southeastern corner of the South Island of New Zealand

REFLECTION QUESTIONS

• What skill does this content help you develop?
• What are the key topics covered in this content?
• How can the content in this section help you demonstrate mastery of a specific skill?
• What questions do you have about this content?
