3.4: Non-Silicate Minerals

The crystal structure of non-silicate minerals (see table) does not contain silicon-oxygen tetrahedra. Many non-silicate minerals are economically important and provide metallic resources such as copper, lead, and iron. They also include valuable non-metallic products such as salt, construction materials, and fertilizer.

Table \(\PageIndex{1}\): Common non-silicate mineral groups.

Mineral Group	Examples	Formula	Uses
Native elements	gold, silver, copper	Au, Ag, Cu	Jewelry, coins, industry
Carbonates	calcite, dolomite	CaCO3, CaMg(CO3)2	Lime, Portland cement
Oxides	hematite, magnetite, bauxite	Fe2O3, Fe3O4, a mixture of aluminum oxides	Ores of iron & aluminum, pigments
Halides	halite, sylvite	NaCl, KCl	Table salt, fertilizer
Sulfides	galena, chalcopyrite, cinnabar	PbS, CuFeS2, HgS	Ores of lead, copper, mercury
Sulphates	gypsum, epsom salts	CaSo4·2H2O, MgSO4·7H2O	Sheetrock, therapeutic soak
Phosphates	apatite	Ca5(PO4)3(F,Cl,OH)	Fertilizer, teeth, bones

Carbonates

Calcite (CaCO₃) and dolomite (CaMg(CO₃)₂) are the two most frequently occurring carbonate minerals, and usually occur in sedimentary rocks, such as limestone and dolostone rocks, respectively. Some carbonate minerals, such as calcite and dolomite, are formed via evaporation and precipitation. However, most carbonate-rich rocks, such as limestone, are created by the lithification of fossilized marine organisms. These organisms, including those we can see and many microscopic organisms, have shells or exoskeletons consisting of calcium carbonate (CaCO₃). When these organisms die, their remains accumulate on the floor of the water body in which they lived and the soft body parts decompose and dissolve away. The calcium carbonate hard parts become included in the sediments, eventually becoming the sedimentary rock called limestone. While limestone may contain large, easy to see fossils, most limestones contain the remains of microscopic creatures and thus originate from biological processes.

Figure \(\PageIndex{1}\): Limestone full of small fossils. (By Jim Stuby; public domain via Wikimedia Commons.)

Calcite crystals show an interesting property called birefringence, meaning they polarize light into two wave components vibrating at right angles to each other. As the two light waves pass through the crystal, they travel at different velocities and are separated by refraction into two different travel paths. In other words, the crystal produces a double image of objects viewed through it. Because they polarize light, calcite crystals are used in special petrographic microscopes for studying minerals and rocks.

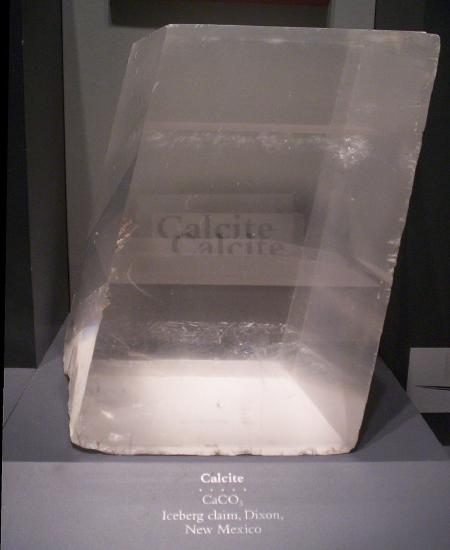

Figure \(\PageIndex{2}\): Calcite crystal in the shape of a rhombohedron. Note the double-refracted word “calcite” in the center of the figure due to birefringence. (By Alkivar; public domain via Wikimedia Commons.)

The figure shows the crystal structure of calcite (CaCO₃). Like silicon, carbon has four valence electrons. The carbonate unit consists of carbon atoms (tiny white spheres) covalently bonded to three oxygen atoms (red), one oxygen sharing two valence electrons with the carbon and the other two sharing one valence electron each with the carbon, thus creating triangular units with a charge of -2. The negatively charged carbonate unit forms an ionic bond with the Ca ion (blue), which as a charge of +2.

Figure \(\PageIndex{3}\): Crystal structure of calcite. (By Materialscientist at English Wikipedia; CC BY-SA 3.0 via Wikimedia Commons.)

Many non-silicate minerals are referred to as salts. The term salts used here refers to compounds made by replacing the hydrogen in natural acids. The most abundant natural acid is carbonic acid that forms by the solution of carbon dioxide in water (CO₂ + H₂O \(\rightarrow\) H₂CO₃). Carbonate minerals are salts built around the carbonate ion (CO₃^2-) where calcium and/or magnesium replace the hydrogen in carbonic acid (such as calcite, CaCO₃). Calcite and closely-related polymorph aragonite are secreted by organisms to form shells and physical structures like corals. Many such creatures draw both calcium and carbonate from dissolved bicarbonate ions (HCO₃^–) in ocean water. As seen in the mineral identification section, calcite is easily dissolved in acid and thus effervesces in dilute hydrochloric acid (HCl). Small dropper bottles of dilute hydrochloric acid are often carried by geologists in the field as well as used in mineral identification labs.

Other salts include halite (NaCl) in which sodium replaces the hydrogen in hydrochloric acid, and gypsum (Ca[SO₄] · 2 H₂O) in which calcium replaces the hydrogen in sulfuric acid (H₂SO₄). Note that some water molecules are also included in the gypsum crystal. Salts are often formed by evaporation and are called evaporite minerals.

Oxides, Halides, and Sulfides

After carbonates, the next most common non-silicate minerals are the oxides, halides, and sulfides.

Oxides consist of metal ions covalently bonded with oxygen. The most familiar oxide is rust, which is a combination of iron oxides (Fe₂O₃) and hydrated oxides. Hydrated oxides form when the iron is exposed to oxygen and water. Iron oxides are important for producing metallic iron. When iron oxide or ore is smelted, it produces carbon dioxide (CO₂) and metallic iron.

Figure \(\PageIndex{4}\): Limonite, a hydrated oxide of iron. (By USGS; public domain via Wikimedia Commons.)

The red color in rocks is usually due to the presence of iron oxides. For example, the red sandstone cliffs in Zion National Park and throughout southern Utah consist of white or colorless grains of quartz coated with iron oxide which serve as cementing agents holding the grains together.

Other iron oxides include limonite, magnetite, and hematite. Hematite occurs in many different crystal forms. The massive form shows no external structure. Botryoidal hematite shows large concentric blobs. Specular hematite looks like a mass of shiny metallic crystals. Oolitic hematite looks like a mass of dull red fish eggs. These different forms of hematite are polymorphs and all have the same formula, Fe₂O₃.

Figure \(\PageIndex{5}\): Oolitic hematite. (By Dave Dyet; public domain via Wikimedia Commons.)

Other common oxide minerals include:

• Ice (H₂O), an oxide of hydrogen
• Bauxite (Al₂H₂O₄), hydrated oxides of aluminum, an ore for producing metallic aluminum
• Corundum (Al₂O₃), which includes ruby and sapphire gemstones

The halides consist of halogens in column VII, usually fluorine or chlorine, ionically bonded with sodium or other cations. These include halite or sodium chloride (NaCl), common table salt; sylvite or potassium chloride (KCl); and fluorite or calcium fluoride (CaF₂).

Figure \(\PageIndex{6}\): Left: Halite crystal showing cubic habit. (By USGS; public domain via Wikimedia Commons.) Right: Fluorite. B shows fluorescence of fluorite under UV light. (By Didier Descouens; CC BY-SA 4.0 via Wikimedia Commons.)

Halide minerals usually form from the evaporation of seawater or other isolated bodies of water. A well-known example of halide mineral deposits created by evaporation is the Bonneville Salt Flats, located west of the Great Salt Lake in Utah (see figure).

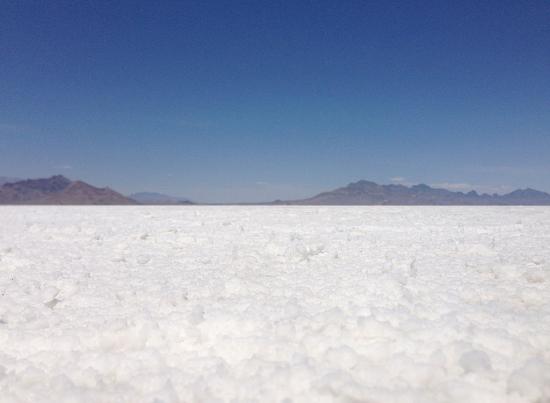

Figure \(\PageIndex{7}\): Salt crystals at the Bonneville Salt Flats. (By Famartin; CC BY-SA 4.0 via Wikimedia Commons.)

Many important metal ores are sulfides, in which metals are bonded to sulfur. Significant examples include galena (lead sulfide, PbS), sphalerite (zinc sulfide, ZnS), pyrite (iron sulfide, FeS₂, sometimes called “fool’s gold”), and chalcopyrite (copper-iron sulfide, CuFeS₂). Sulfides are well known for being important ore minerals. For example, galena is the main source of lead, sphalerite is the main source of zinc, and chalcopyrite is the main copper ore mineral mined in porphyry deposits like the Bingham mine. The largest sources of nickel, antimony, molybdenum, arsenic, and mercury are also sulfides.

Figure \(\PageIndex{8}\): Cubic crystals of pyrite. (By CarlesMillan; CC BY-SA 3.0, via Wikimedia Commons.)

Sulfates

Sulfate minerals contain a metal ion, such as calcium, bonded to a sulfate ion. The sulfate ion is a combination of sulfur and oxygen (SO₄^2-). The sulfate mineral gypsum (CaSO₄ᐧ2H₂O) is used in construction materials such as plaster and drywall. Gypsum is often formed from evaporating water and usually contains water molecules in its crystalline structure. The ᐧ2H₂O in the formula indicates the water molecules are whole H₂O. This is different from minerals like amphibole, which contain a hydroxide ion (OH^–) that is derived from water but is missing a hydrogen ion (H⁺). The calcium sulfate without water is a different mineral than gypsum called anhydrite (CaSO₄).

Figure \(\PageIndex{9}\): Gypsum crystal. (By USGS; public domain via Wikimedia Commons.)

Phosphates

Phosphate minerals have a tetrahedral phosphate ion (PO₄^3-) combined with various anions and cations. In some cases arsenic or vanadium can substitute for phosphorus. Phosphates are an important ingredient of fertilizers as well as detergents, paint, and other products. The best known phosphate mineral is apatite, Ca₅(PO₄)₃(F,Cl,OH), variations of which are found in teeth and bones. The gemstone turquoise [CuAl₆(PO₄)₄(OH)₈·4H₂O ] is a copper-rich phosphate mineral that, like gypsum, contains water molecules.

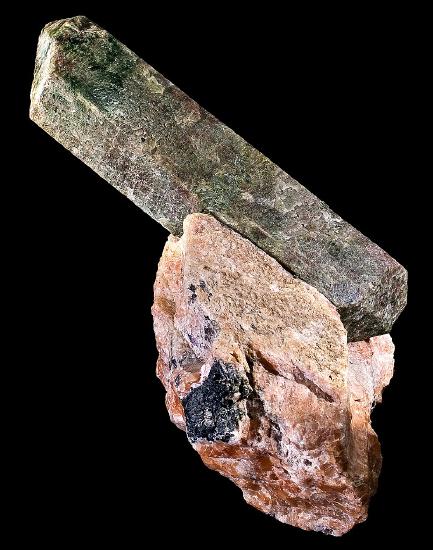

Figure \(\PageIndex{10}\): Apatite crystal on calcite. (By Didier Descouens; CC BY-SA 4.0 via Wikimedia Commons.)

Native Element Minerals

Native element minerals, usually metals, occur in nature in a pure or nearly pure state. Gold is an example of a native element mineral; it is not very reactive and rarely bonds with other elements so it is usually found in an isolated or pure state. The non-metallic and poorly-reactive mineral carbon is often found as a native element, such as graphite and diamonds. Mildly reactive metals like silver, copper, platinum, mercury, and sulfur sometimes occur as native element minerals. Reactive metals such as iron, lead, and aluminum almost always bond to other elements and are rarely found in a native state.

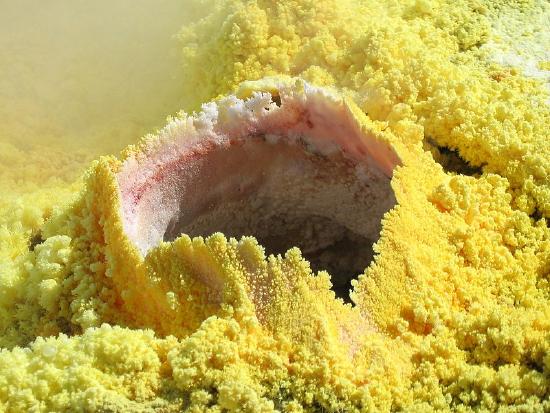

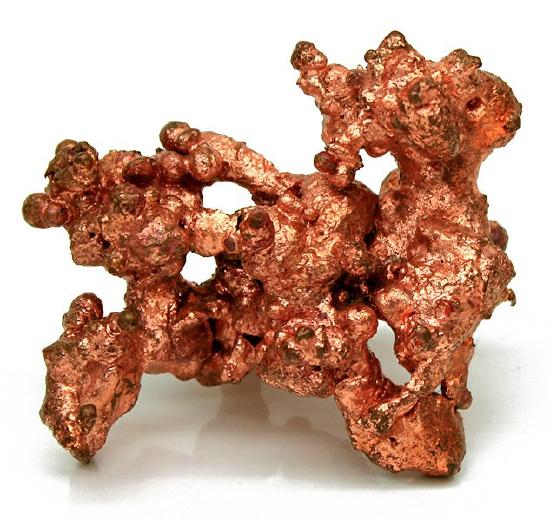

Figure \(\PageIndex{11}\): Left: Native copper. (By Jonathan Zander; CC BY-SA 3.0 via Wikimedia Commons.) Right: Native sulfur deposited around a volcanic fumarole. (By Brisk g; public domain via Wikimedia Commons.)
