5.9: Ice Formation

When surface water is cooled to the freezing point, the behavior of ice and water in lakes and oceans is determined by two factors: the relative density of ice and water and the variations of water density with salinity at temperatures near the freezing point.

Dissolved Salts and Freezing

Increasing the salinity lowers the freezing point of water (Fig. 5-15). This is why salt is used to de-ice roads. Increasing the concentration of dissolved salts also inhibits the clustering of water molecules and therefore lowers the temperature at which the density maximum occurs (Fig. 5-15). As salinity increases, the temperature of the water density maximum decreases more rapidly than the freezing point temperature. Therefore, as salinity increases, the difference between the temperature of maximum density (4°C in pure water) and the freezing point is narrowed. At a salinity of 24.7, the density maximum and the freezing point are the same temperature (–1.36°C). At any salinity above 24.7, the freezing point is reached before a density maximum occurs. Since open-ocean water generally has a salinity above 24.7, seawater does not have an anomalous density maximum.

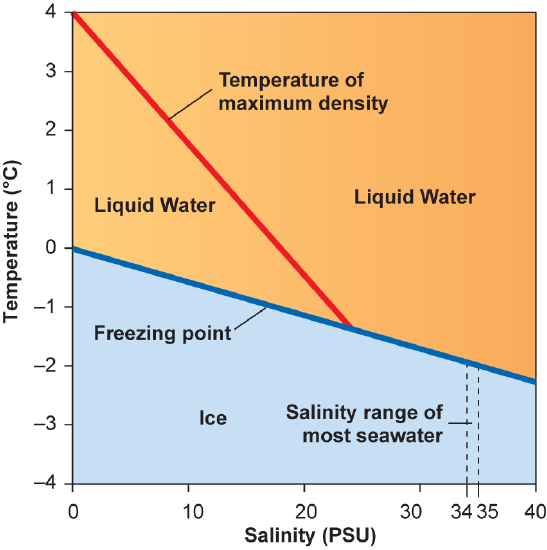

Figure 5-15. Increasing the concentration of dissolved salts in water reduces both the freezing point and the temperature at which the anomalous density maximum occurs. However, the temperature of maximum density is reduced more rapidly than the freezing point as salt concentration increases. Consequently, seawater (99% of which has salinity greater than 33) has no anomalous density maximum.

Because freshwater has a maximum density at 4°C and seawater has no maximum density, lakes and rivers behave differently from the oceans when freezing. As winter begins, the surface water of a freshwater lake cools and its density increases. This cold, dense surface water sinks and displaces bottom water upward to be cooled in its turn. This convection process is called “overturning” (CC3). Convection continues until all the water in the lake is 4°C, the maximum density. As the surface layer of water cools below 4°C, its density no longer increases. Instead, it actually decreases. Therefore, this water does not sink. The water in this surface layer continues to cool until it reaches 0°C and then the water freezes. The resulting ice has a lower density than water and floats. With further cooling, the lake water continues to lose heat, but because of the density maximum there is no convection, so the heat is lost by conduction through the overlying ice layer. As heat continues to be lost, the water immediately under the ice cools to 0°C and freezes. Therefore, the ice layer grows progressively thicker from underneath. Ice is not a very good conductor of heat and a large amount of heat must be lost to convert water to ice because of the high latent heat of fusion. Consequently, the ice layer on a lake surface will grow to a thickness of at most only a meter or two, depending on the length and severity of the winter. If the lake is deep enough, a pool of liquid water at 4°C will remain below the ice of the lake throughout the winter. Many freshwater organisms that cannot tolerate being frozen survive the winter in such pools of water.

In contrast to freshwater, as seawater (salinity greater than 24.7) cools, its density increases continuously until it reaches its freezing point of about –2°C. Cooling water sinks away from the surface until the whole upper layer approaches freezing and ice forms. This is why most of the deep water in the oceans is cold, generally below 4°C (Chap. 10). As seawater freezes, most of the dissolved salts are excluded from the ice and remain in the unfrozen water. Therefore, salinity increases in the remaining water, and as a result, the freezing point decreases (Fig. 5-15). If freezing occurs quickly, or if winds break up the surface ice and splash water onto the ice surface, isolated pockets or pools of liquid water can be present within the ice. The water in the pockets has high salinity, and its temperature may be several degrees below the freezing point of seawater with normal salinity. Some microscopic algae, bacteria, and animals survive the Arctic and Antarctic winters in such isolated pockets of liquid inside the sea ice.

Density of Ice

Most substances have higher density in the solid phase than in the liquid phase. Water is an exception to this rule. Ice at 0°C has a density of 0.917 g•cm–3, about 8% less than the density of water of the same temperature. Hence, water expands when it freezes. The reason is that the ice crystal has an open lattice structure, and fewer water molecules are packed into the volume that they would occupy as water (Fig. 5-12). In the winter, expansion of water as it freezes bursts water pipes, breaks up rocks, and causes potholes in street surfaces when small cracks are filled with water and then freeze.

Ice floats because it is less dense than water. If ice did not float, it would sink to the bottoms of ponds and lakes as they froze, and surface water would continue to freeze and sink until no liquid water was left. Hence, aquatic organisms would have no liquid water refuge below the ice in which to survive the winter. In addition, sea ice formed in the polar regions would sink to the floor of the oceans and accumulate. Because there would be no way to bring the ice to the surface to remelt it, the oceans would always have a warm-water surface layer over a solid ice layer extending to the seafloor.
