was reduced by 20% [1]. This example illustrates that transpiration is, in one sense, not an active physiological function of plants but rather a primarily passive concession plants must make to the almost insatiable atmospheric demand for water

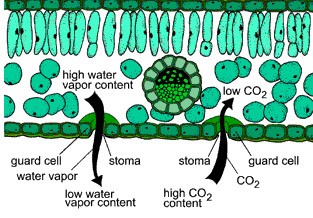

To understand the physics of transpiration, we need to consider the processes occurring at the stomatal level. Plant stomata are pores or openings on the exterior surfaces of leaves and other plant organs(Fig. 11-2, left side). A pair of specialized cells, called guard cells, allow the plant to open and close the stomata(Fig. 11-2, right side). The opening and closing of the stomata regulate the flow of gases such as water vapor and carbon dioxide into and out of the plant(Fig. 11-3).The plant must open the stomata to take in carbon dioxide from the atmosphere, the first step in the process of photosynthesis. This high magnification video shows a single plant stoma opening and closing [website] When the stomata open to take in carbon dioxide, the plant unavoidably loses water vapor to the atmosphere.The oxygen gas generated in the process of photosynthesis also exits the plant through the stomata.
