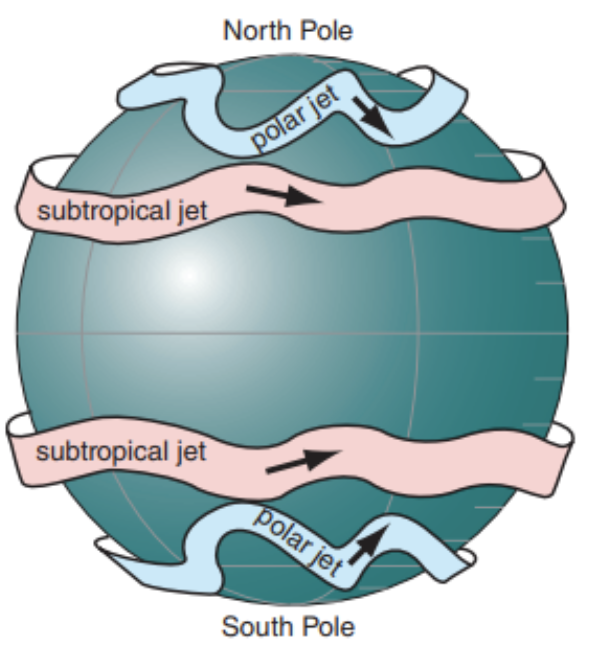

If the general circulation of the atmosphere is like a giant meandering river of air around the globe, then jet streams are swiftly flowing currents within that river. Jet streams are thousands of kilometers in length, and hundreds of kilometers in width. In the core of a jet stream (called a jet streak), wind speeds are often higher than 100 knots and are occasionally higher than 200 knots. The polar jet can sometimes merge with the subtropical jet if it sweeps southward enough, and it occasionally splits into two jet streams.
The existence of jet streams is ultimately due to the energy imbalance between tropical and polar regions. How exactly do they form? As mentioned before, the polar front is a boundary between colder polar air and warmer subtropical air. Because of this, the strongest temperature gradient occurs along the polar frontal zone. This rapid change of temperature with distance also causes a rapid pressure change, due to the thermal wind effect (a vertical shear in the geostrophic wind caused by a horizontal temperature gradient). This strong pressure gradient across the polar front causes intense wind speeds that become the jet stream. The temperature contrast between north and south along the polar front is more intense during the winter than during the summer, so the polar jet is also stronger during the winter. During winter, the leading edge of the cold polar air pushes further south into subtropical areas. During the summer, the polar front retreats into higher latitudes and is weakened.

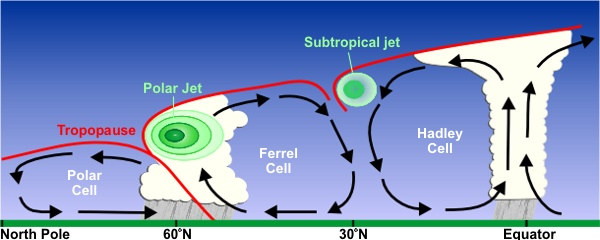

The subtropical jet stream tends to form just above the descending branch of the Hadley cell, at about 12 km altitude. Here, a boundary exists between warmer equatorial air and cooler air that has been cycled up and around the Ferrel cell from the polar front. This is sometimes referred to as the subtropical front, but it does not extend all the way to the surface. Here, the temperature gradient is strongest aloft near the tropopause, which induces a sharp pressure gradient and strong winds aloft as well.
One final thought for Chapter 11: isn’t it fascinating that all of these global winds are caused by differential heating and the rotation of Earth? Everything is connected in one way or another and fits together like a puzzle.
Chapter 11: Questions to Consider
-
Query \(\PageIndex{1}\)
- What assumptions are made for a single-cell model of Earth’s atmosphere?
- Drag the terms to their correct position:
Query \(\PageIndex{2}\)
- Where are jet streams located? Why do they differ in height?
Selected Practice Question Answers:
Query \(\PageIndex{3}\)
