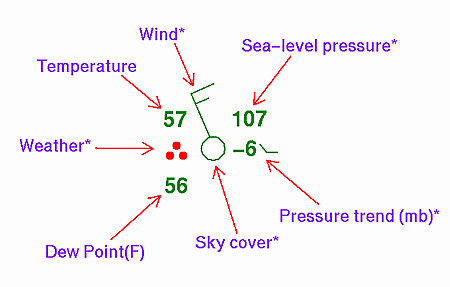

When reading wind barbs, keep in mind that the flag always points in the direction that the wind is coming from. You can think of it as an arrow flying from a bow, the flag represents the feathers, which are at the back of the arrow in the direction the arrow is coming from. The tip is the direction the arrow is flying toward. More information on wind barb and cloud cover symbols are provided below.
Sea level pressure is typically given in three digits, with the last digit being the nearest tenth. The initial 9 or 10 is left out. So, “147” is actually 1014.7 mb and “998” would be 999.8 mb. When reading station plot pressure, mentally place a decimal point to the left of the third digit, and use your intuition and the pressure of nearby stations in order to decide if the pressure has a leading 9 or 10.
The table below provides information for wind barbs. Two concentric circles with no lines indicates calm wind and a line with no barbs is 1-2 speed units. A half line is 5, a full line is 10, and a triangle is 50. On many weather maps, the unit for winds is given in knots, although different weather maps can use different units so it is always good to check. The lines and triangles are read a bit like roman numerals—just add them up!
The table below provides sky cover information, which is typically shown in the circular center of the station plot model. Depending on the symbol type, it can indicate clear sky or various levels of overcast skies.
